- Productbeschrijving
-
Productbeschrijving

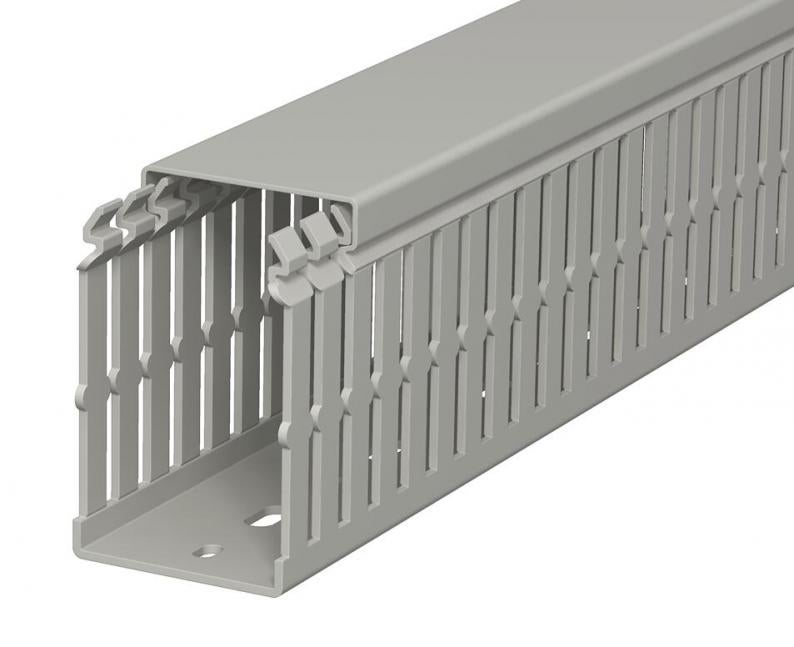

Bedradingskoker conform NEN-EN 50085-2-3 incl. deksel en bodemperforatie, nokken in de zijgleuven voorkomen dat de kabels uit de koker vallen.
- Technische gegevens
-
Technische gegevens
Dimensie 75x50x2000 Flexibel nee Halogeenvrij nee Kleur steengrijs; RAL 7030 Materiaal Polyvinylchloride Met bovenstuk ja Nuttige doorsnede 30,45 cm² Sleufafstand 12,5 mm Sleufbreedte 5 mm Temperatuurbereik max. 60 °C Temperatuurbereik min. -5 °C Type bevestiging Bodemperforatie Uitvoering van de zijwand gesleufd zelfblussend ja Afmetingen

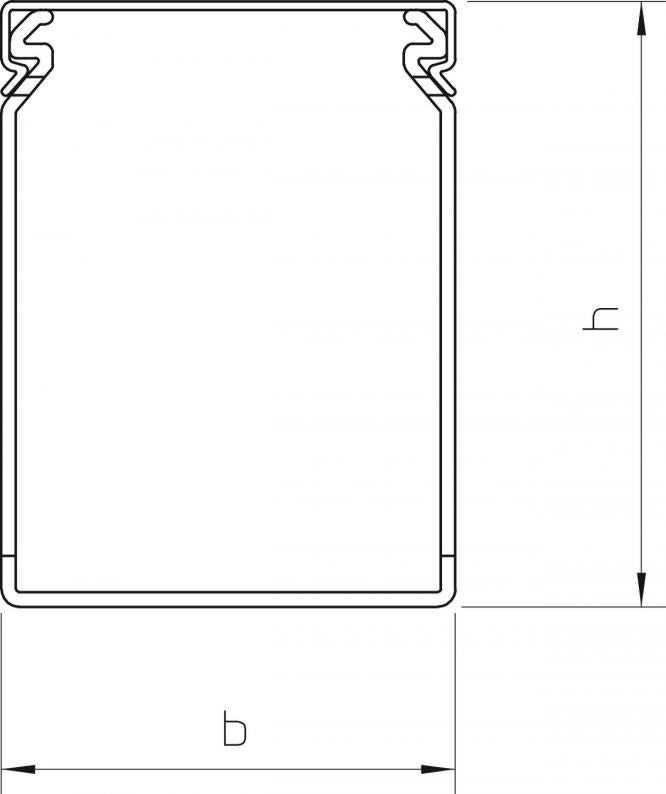

Breedte 50 mm Hoogte 75 mm Lengte 2000 mm - Alle typen
- Downloads
-
Specificatieblad LKV N 75050 / 6178424 , 0.20MB , pdfBrochure Bedradingskokers , 2.10MB , pdfCatalogus Kabelinstallatiesystemen , 17.62MB , pdfConformiteitsverklaring LKV N 75050 / 6178424 , 0.15MB , pdfUK Conformiteitsverklaring LKV N 75050 / 6178424 , 0.14MB , pdfREACH Conformiteitsverklaring LKV N 75050 / 6178424 , 0.12MB , pdfRoHS Conformiteitsverklaring LKV N 75050 / 6178424 , 0.12MB , pdfMontagehandleiding Montagehandleiding bedradingskoker LK4/LK4H/LKV/LKVH , 5.49MB , pdfVeiligheidsspecificatieblad PVC_materiaalspecificaties , 0.02MB , pdf
