- Productbeschrijving
-
Productbeschrijving

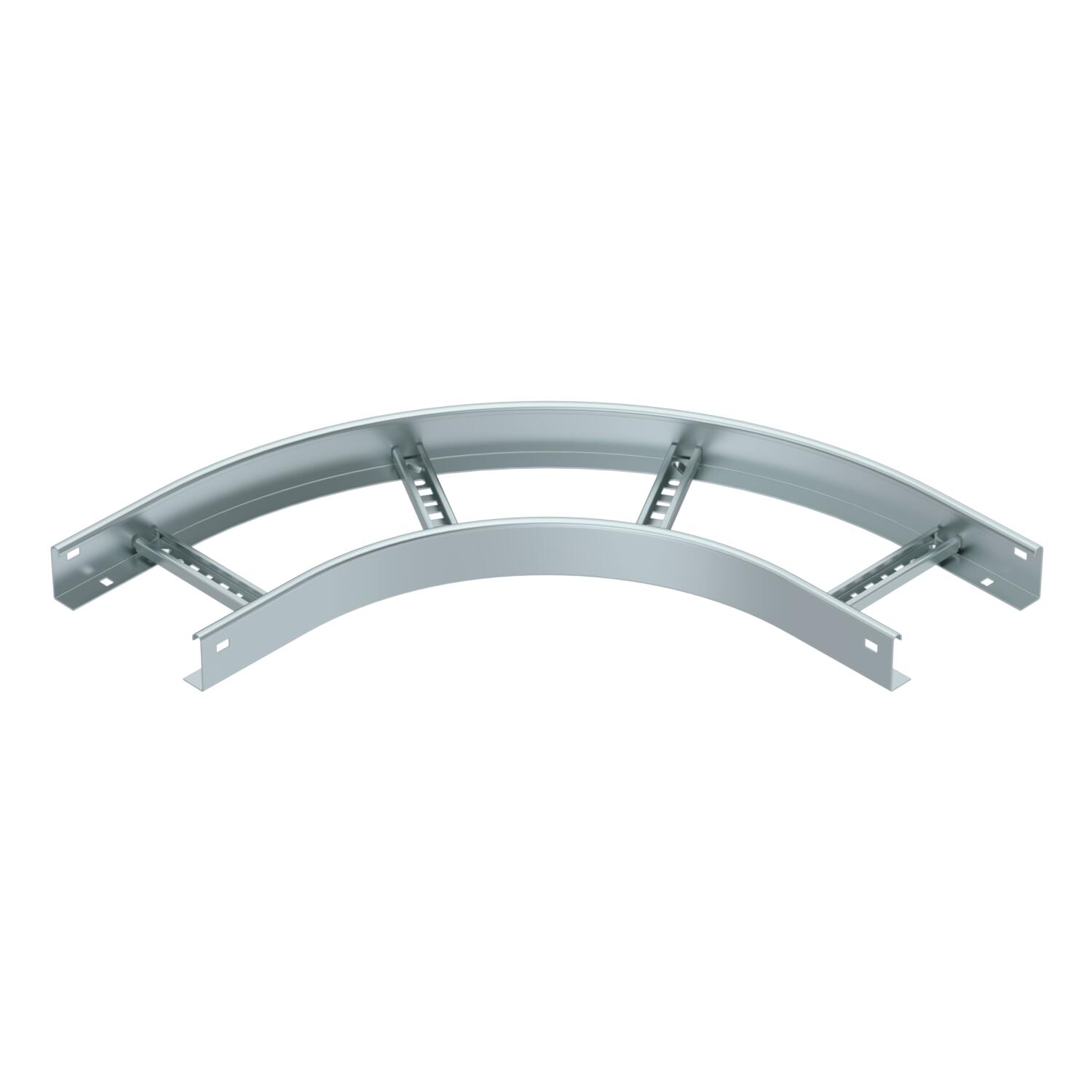

Bocht 90°, horizontaal met gelaste sporten, voor alle types kabelladder met een zijhoogte van 60 mm.
- Technische gegevens
-
Technische gegevens
Afbuiging (hoek) 90° Dimensie 60x200 Functiebehoud nee Materiaal Staal Oppervlak bandverzinkt Plaatdikte 1,5 mm Richtingsverandering Horizontaal Roestvast staal, gebeitst nee Scharnierend nee Uitvoering van de sporten Profiel geperforeerd Uitvoering van de zijkant Vlak profiel Uitvoering verbinder zonder verbinder Verspanuitvoering nee Zijperforatie nee Afmetingen

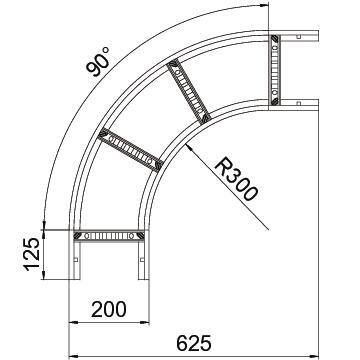

Breedte 200 mm Hoogte 60 mm Maat B 200 mm Maat R 200 mm - Alle typen
- Downloads
-
Specificatieblad LB 90 620 R3 FS / 6225042 , 0.20MB , pdfRichtlijn KTS Kabeltragsysteme , 1.61MB , pdfCatalogus Kabeltragsysteme , 45.23MB , pdfConformiteitsverklaring LB 90 620 R3 FS / 6225042 , 0.15MB , pdfUK Conformiteitsverklaring LB 90 620 R3 FS / 6225042 , 0.09MB , pdfREACH Conformiteitsverklaring LB 90 620 R3 FS / 6225042 , 0.12MB , pdfRoHS Conformiteitsverklaring LB 90 620 R3 FS / 6225042 , 0.12MB , pdfMontagehandleiding Montagehandleiding kabelladdersystemen , 6.45MB , pdfMontagehandleiding General information on the mounting , 2.61MB , pdf
