- Productbeschrijving
-
Productbeschrijving

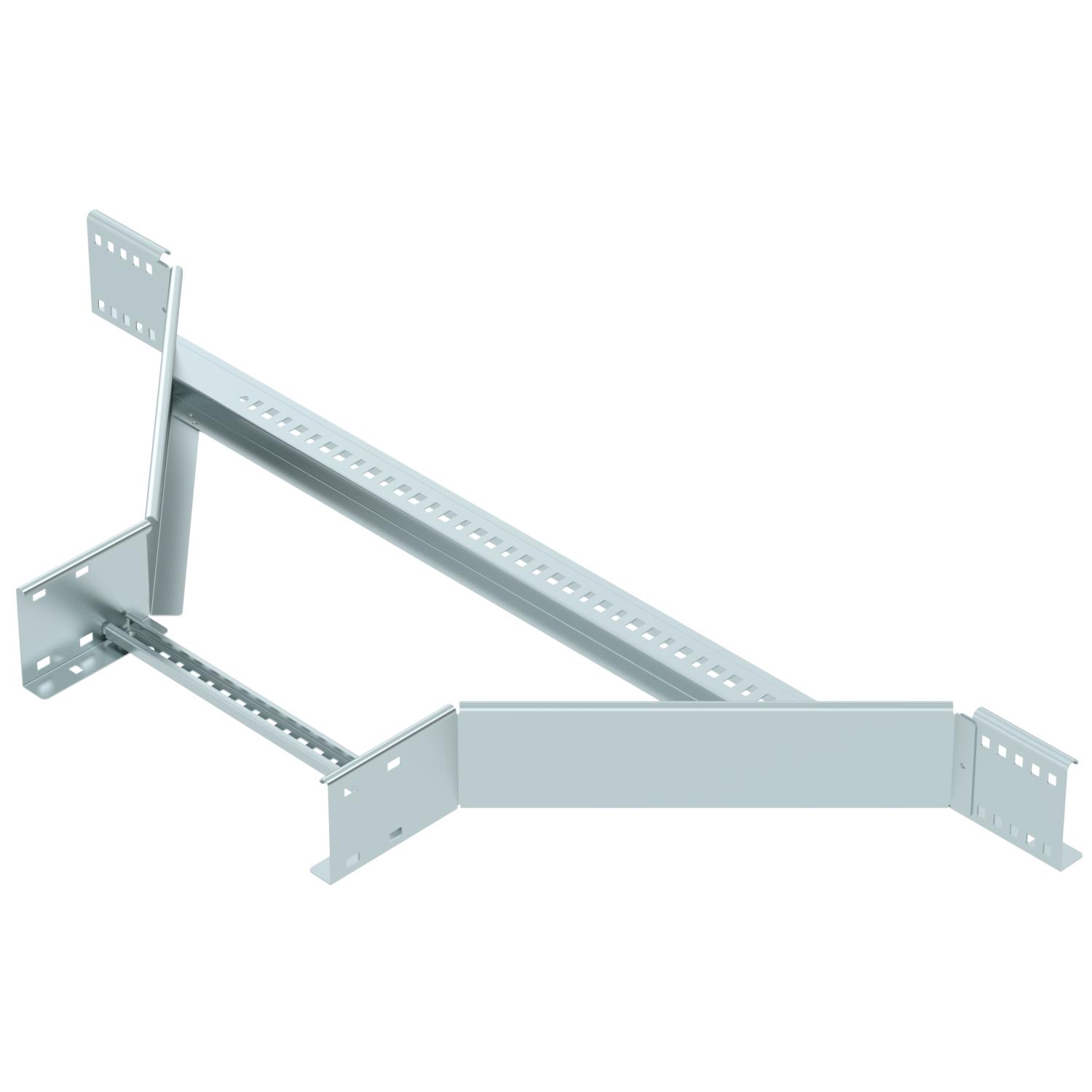

Aanbouw-T-stuk, horizontaal met gelaste sporten, voor alle types kabelladder met een zijhoogte van 110 mm.
- Technische gegevens
-
Technische gegevens
Dimensie 110x400 Functiebehoud nee Materiaal Staal Oppervlak bandverzinkt Plaatdikte 1,5 mm Roestvast staal, gebeitst nee Uitvoering van de sporten Profiel geperforeerd Uitvoering van de zijkant Vlak profiel Uitvoering verbinder zonder verbinder Verspanuitvoering nee Afmetingen

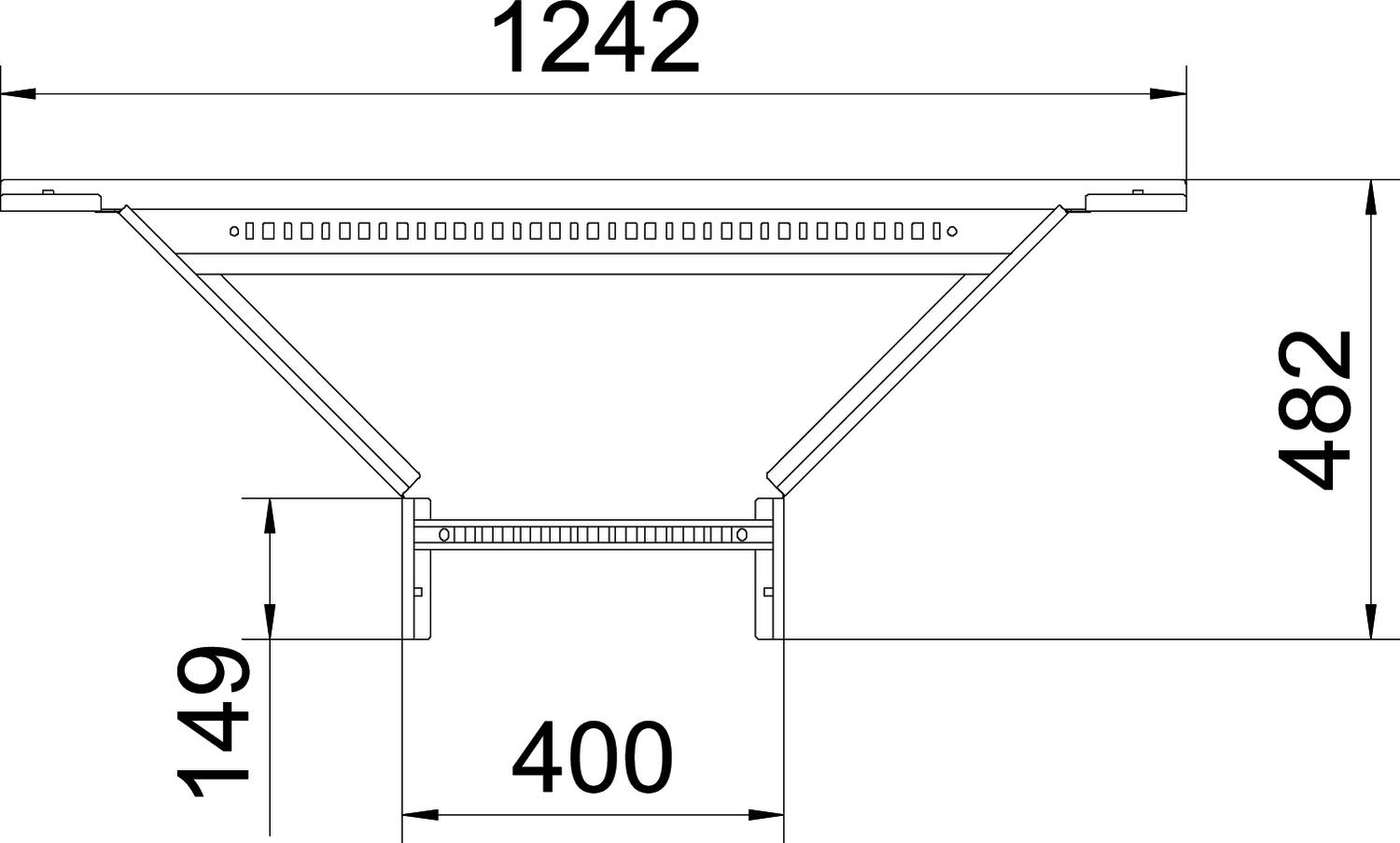

Breedte 400 mm Hoogte 110 mm Maat B 400 mm Maat R 300 mm - Alle typen
- Downloads
-
Specificatieblad LAA 1140 R3 FS / 6225914 , 0.15MB , pdfRichtlijn KTS Kabeltragsysteme , 1.61MB , pdfCatalogus Kabeltragsysteme , 45.23MB , pdfConformiteitsverklaring LAA 1140 R3 FS / 6225914 , 0.15MB , pdfUK Conformiteitsverklaring LAA 1140 R3 FS / 6225914 , 0.09MB , pdfMontagehandleiding Montagehandleiding kabelladdersystemen , 6.45MB , pdfMontagehandleiding General information on the mounting , 2.61MB , pdf
