- Productbeschrijving
-
Productbeschrijving

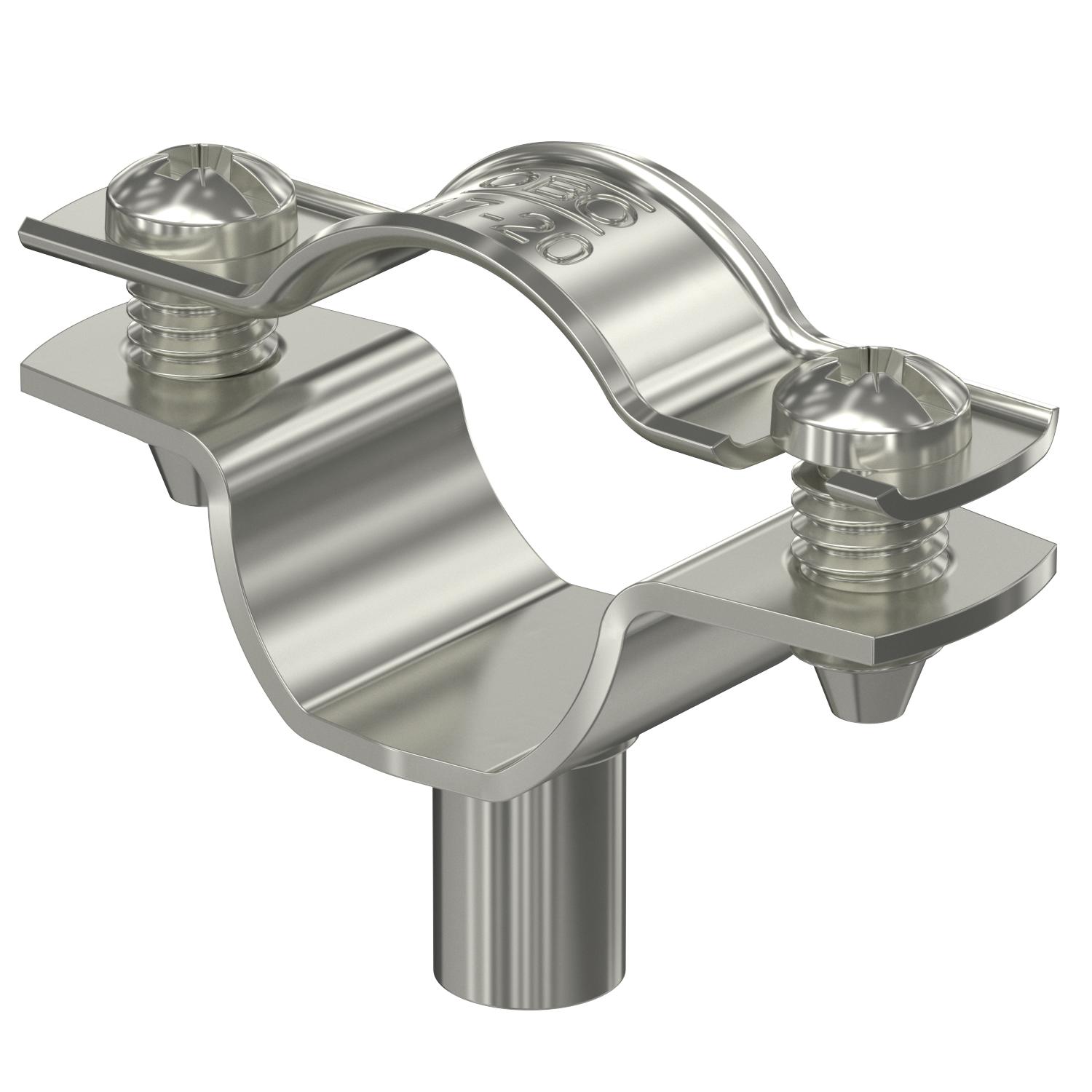

Afstandsklem voor montage van buizen en kabels aan wand, plafond en vloer. Met zelfborgend deksel. Bevestiging via aanzet met binnendraad.
Toegelaten voor het functiebehoud conform DIN 4102 deel 12, functiebehoudklassen E 30 tot E90.
- Technische gegevens
-
Technische gegevens
Aantal kabels/ buizen 1 Afstand tot de wand ja Dimensie 17-20mm Geschikt in brandbeveiligingszone ja Halogeenvrij ja Materiaal Roestvast staal 1.4571 Materiaaldikte 1,25 mm met kunststof mantel nee Spanbereik D max. 20 mm Spanbereik D min. 17 mm Type bevestiging schroefdraadaansluiting Uitvoering Gesloten UV-bestendig ja voor diameter 17 - 20 Afmetingen

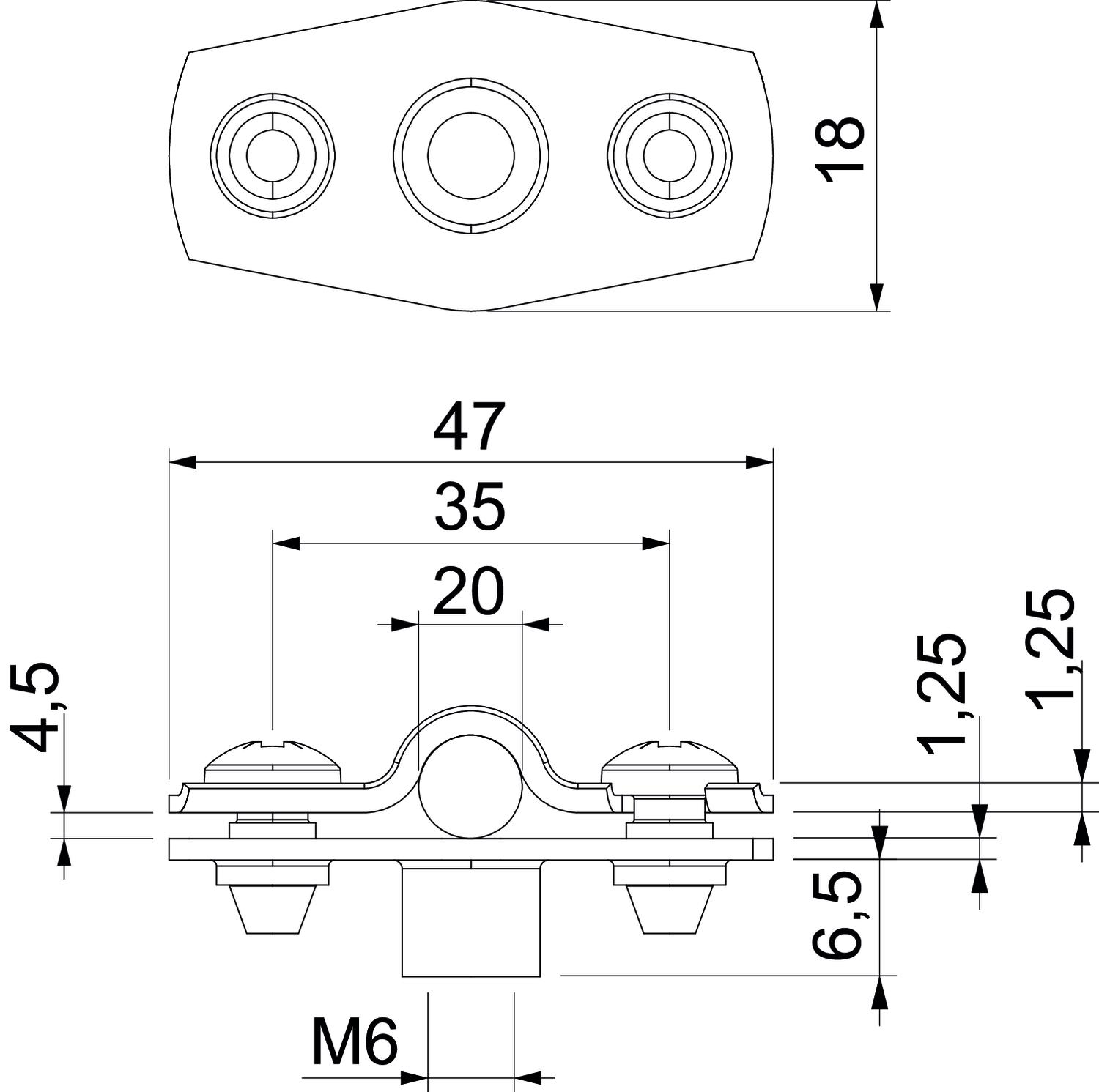

Afmeting d max. 20 mm Afmeting d min. 17 mm Afmeting t1 (mm) 1,25 Afmeting t2 (mm) 1,25 Maat A 47 mm Maat B 35 mm Maat b 18 mm Maat D 20 mm Maat H1 12 mm Maat x 4,5 mm - Alle typen
-
Alle typen
- Downloads
-
Specificatieblad ASG 732 20 A4 / 1362469 , 0.26MB , pdfCatalogus Fastening materials , 19.78MB , pdfConformiteitsverklaring ASG 732 20 A4 / 1362469 , 0.15MB , pdfREACH Conformiteitsverklaring ASG 732 20 A4 / 1362469 , 0.12MB , pdfRoHS Conformiteitsverklaring ASG 732 20 A4 / 1362469 , 0.12MB , pdf
