- Productbeschrijving
-
Productbeschrijving

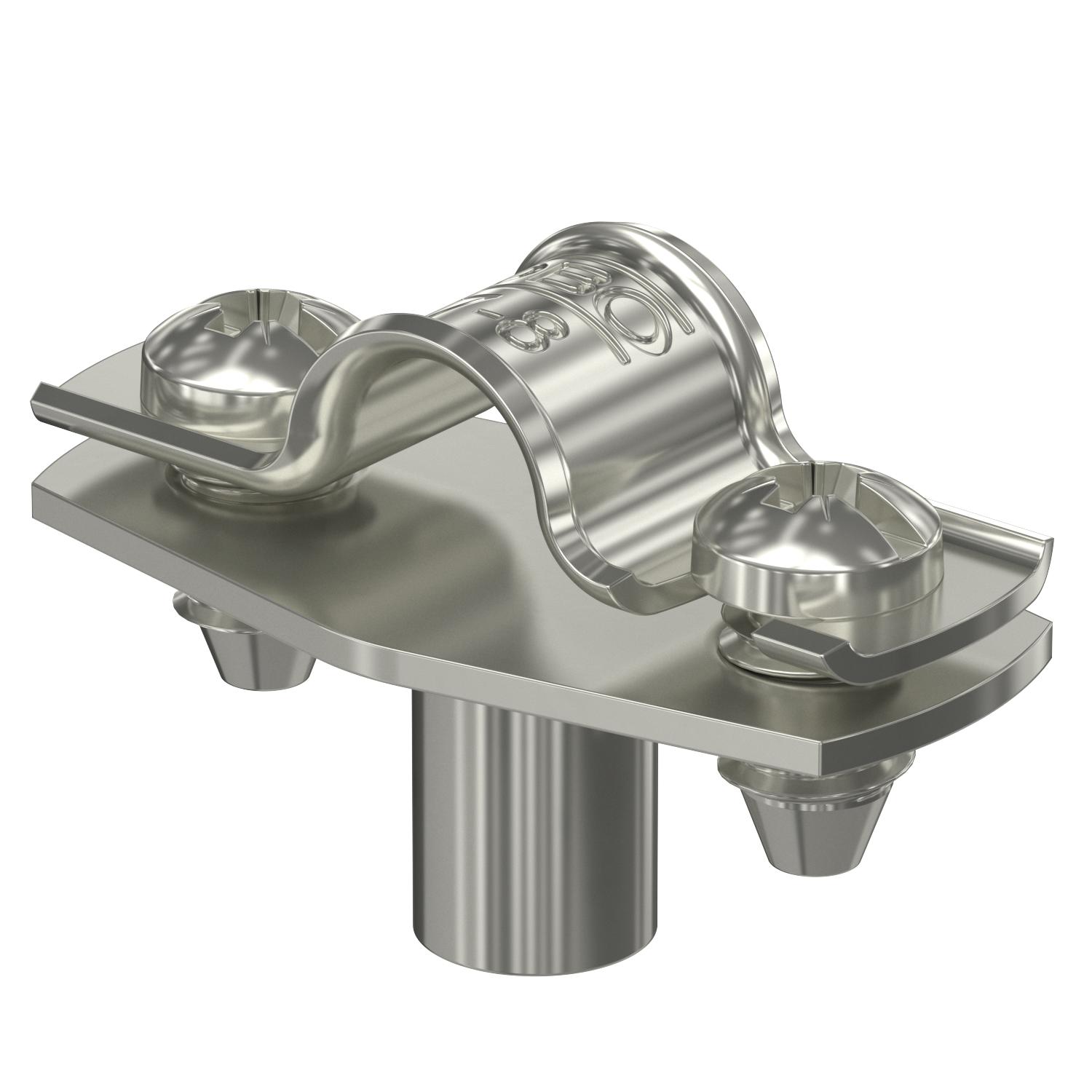

Afstandsklem voor montage van buizen en kabels aan wand, plafond en vloer. Met zelfborgend deksel. Bevestiging via aanzet met binnendraad.
Toegelaten voor het functiebehoud conform DIN 4102 deel 12, functiebehoudklassen E 30 tot E90.
- Technische gegevens
-
Technische gegevens
Aantal kabels/ buizen 1 Afstand tot de wand ja Dimensie 7-8mm Geschikt in brandbeveiligingszone ja Halogeenvrij ja Materiaal Roestvast staal 1.4571 Materiaaldikte 1,25 mm met kunststof mantel nee Spanbereik D max. 8 mm Spanbereik D min. 7 mm Type bevestiging schroefdraadaansluiting Uitvoering Gesloten UV-bestendig ja voor diameter 7 - 8 Afmetingen

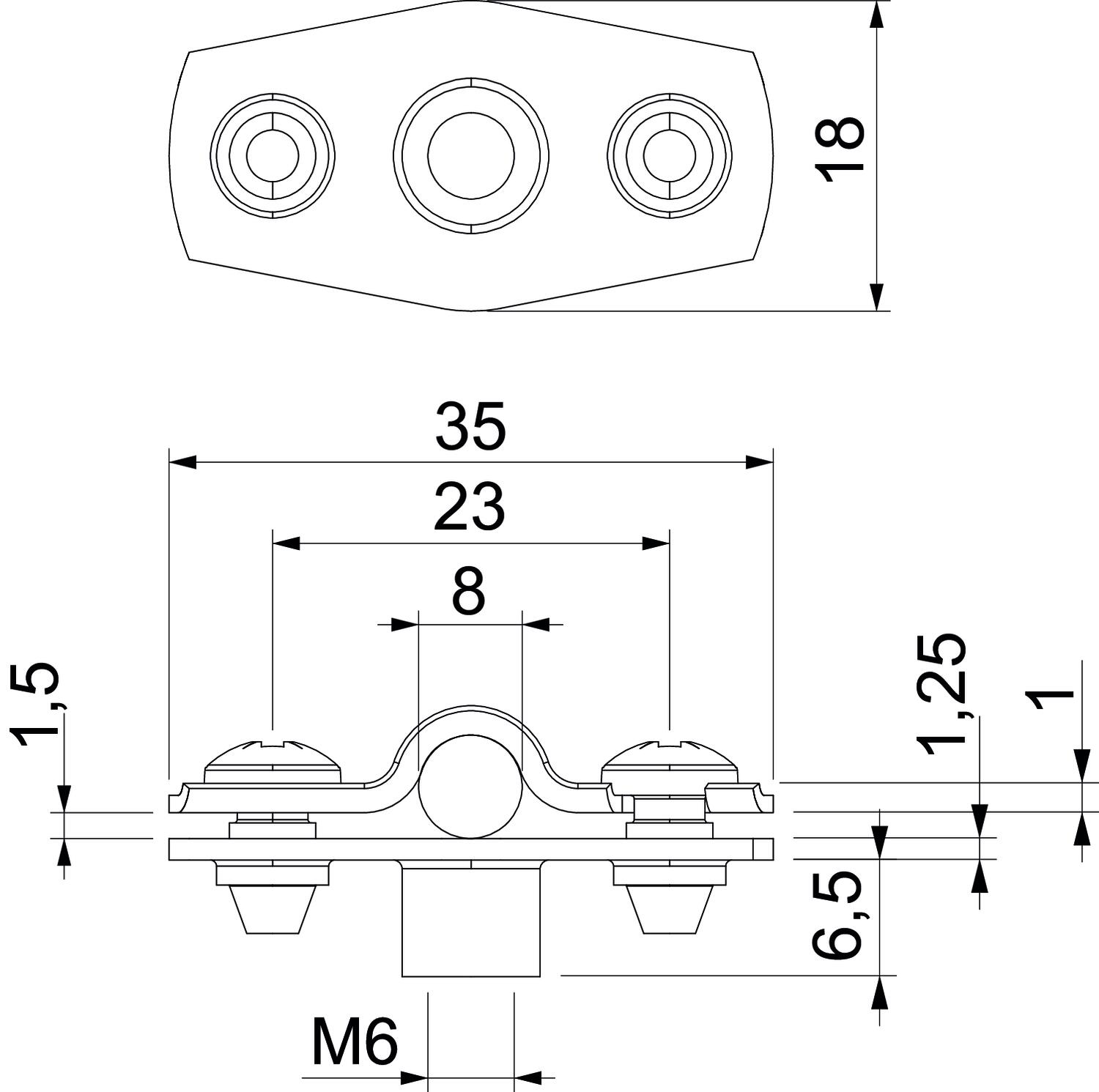

Afmeting d max. 8 mm Afmeting d min. 7 mm Afmeting t1 (mm) 1 Afmeting t2 (mm) 1,25 Maat A 35 mm Maat B 23 mm Maat b 18 mm Maat D 8 mm Maat H1 12 mm Maat x 1,5 mm - Alle typen
-
Alle typen
