- Productbeschrijving
-
Productbeschrijving

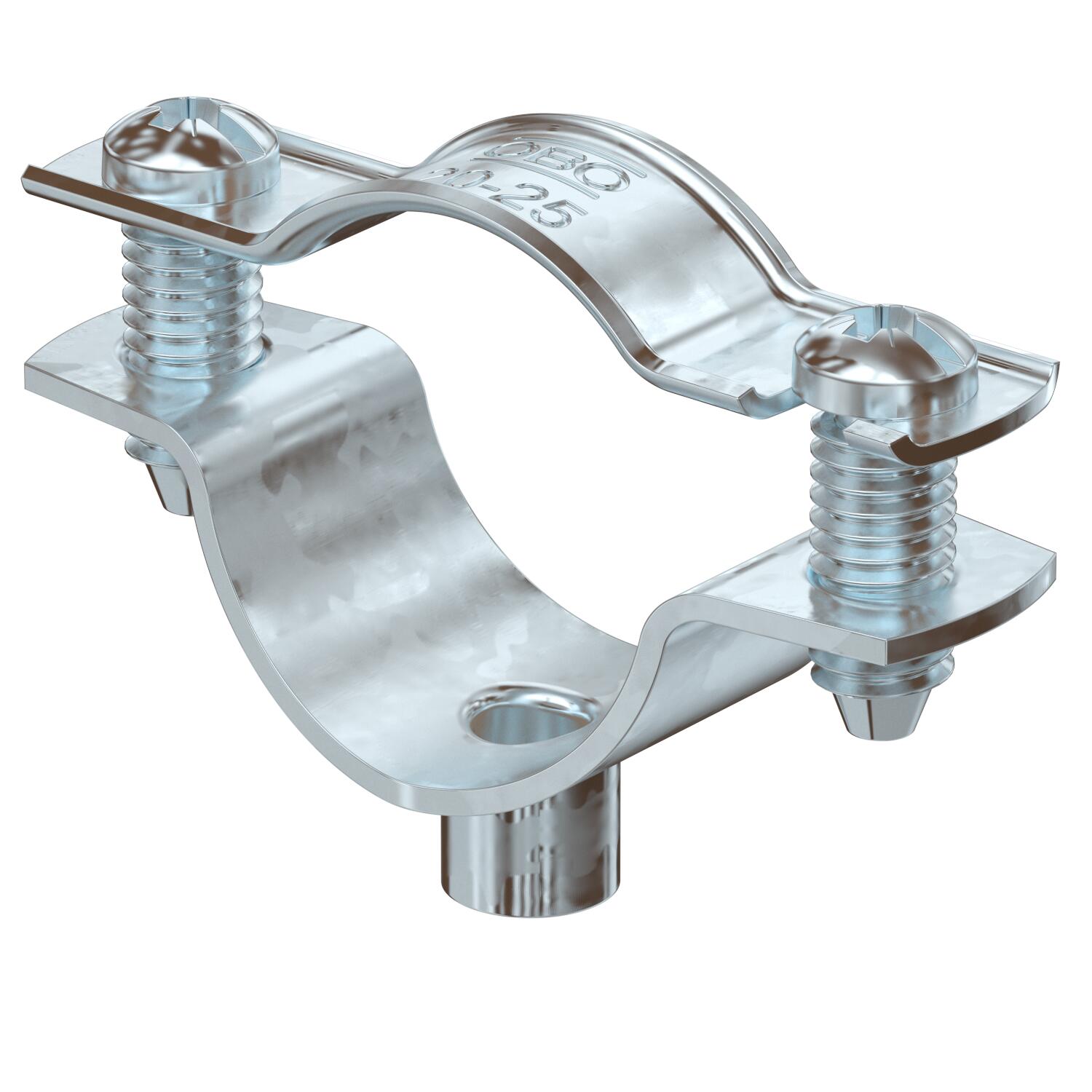

Afstandsklem voor montage van buizen en kabels aan wand, plafond en vloer. Met zelfborgend deksel. Bevestiging via aanzet met binnendraad. Oppervlakken G en FT vanaf klemgrootte 20 geschikt voor montage met nagelapparaat of boutplaatsgereedschap.
Toegelaten voor het functiebehoud conform DIN 4102 deel 12, functiebehoudklassen E 30 tot E90.
- Technische gegevens
-
Technische gegevens
Aantal kabels/ buizen 1 Afstand tot de wand ja Dimensie 20-25mm Geschikt in brandbeveiligingszone ja Halogeenvrij ja Materiaal Staal Materiaaldikte 1,25 mm met kunststof mantel nee Oppervlak thermisch verzinkt Spanbereik D max. 25 mm Spanbereik D min. 20 mm Type bevestiging schroefdraadaansluiting Uitvoering Gesloten UV-bestendig ja voor diameter 20 - 25 Afmetingen

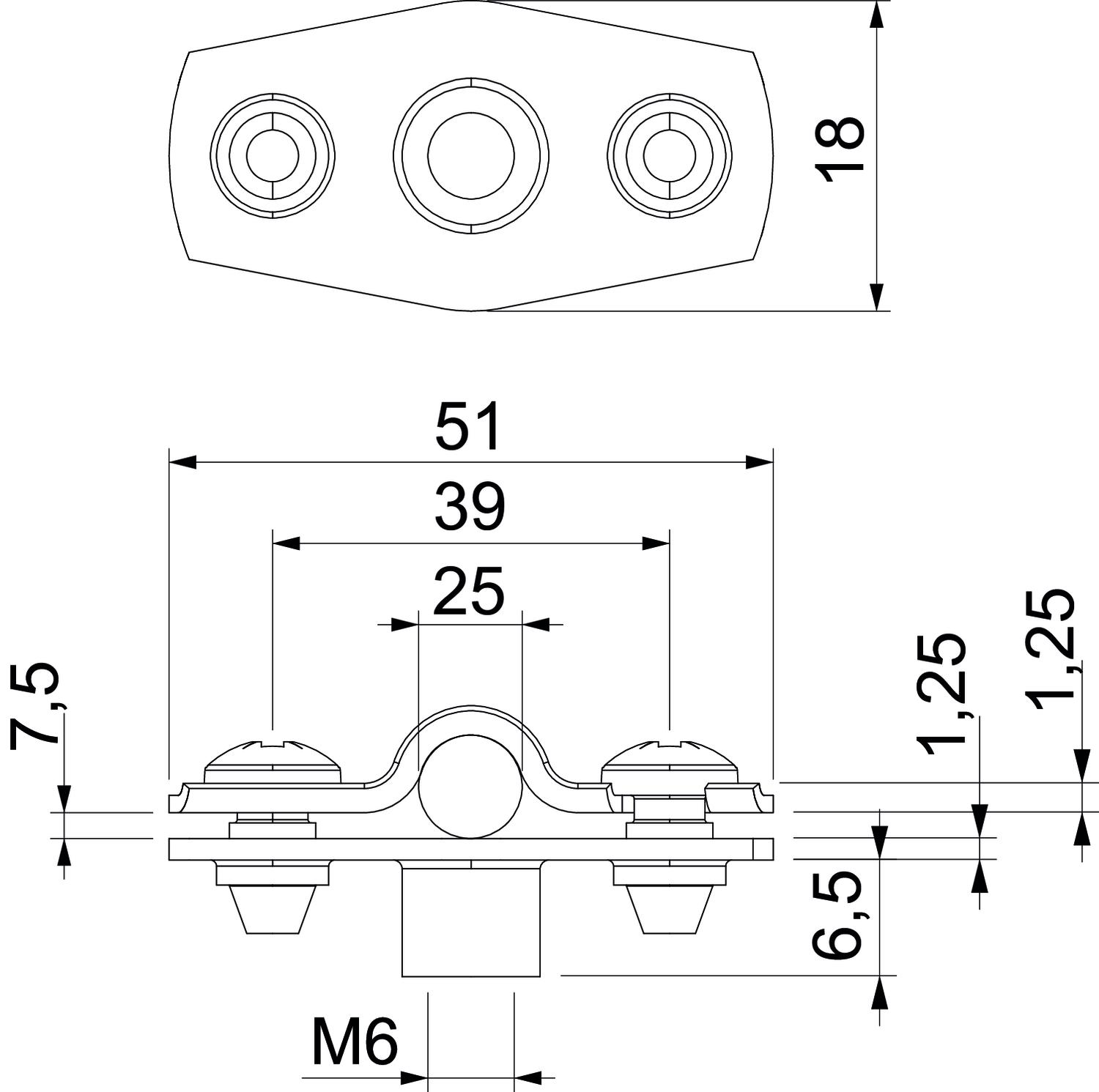

Afmeting d max. 25 mm Afmeting d min. 20 mm Afmeting t1 (mm) 1,25 Afmeting t2 (mm) 1,25 Maat A 51 mm Maat B 39 mm Maat b 18 mm Maat D 25 mm Maat H1 6,5 mm Maat x 7,5 mm - Alle typen
-
Alle typen
- Downloads
-
Specificatieblad ASG 732 25 FT / 1362372 , 0.27MB , pdfCatalogus Fastening materials , 19.78MB , pdfConformiteitsverklaring ASG 732 25 FT / 1362372 , 0.15MB , pdf
