- Productbeschrijving
-
Productbeschrijving

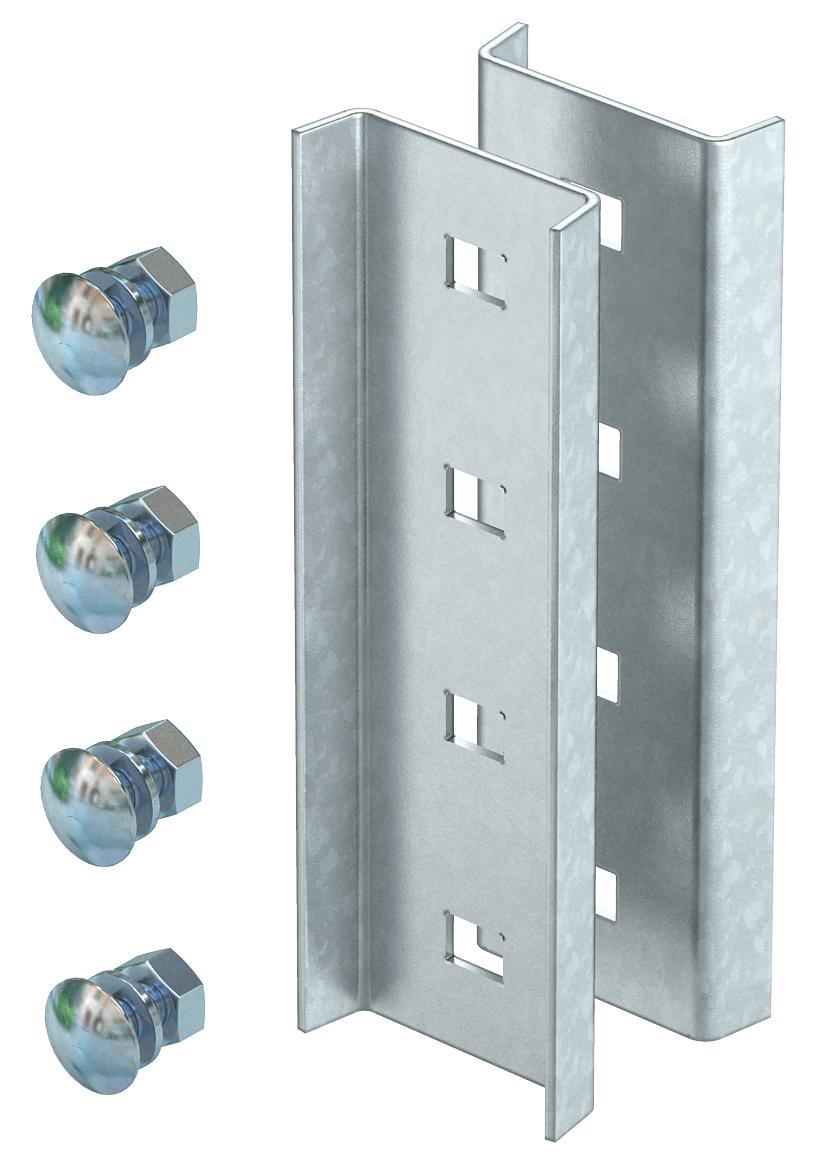

I-profielverbinder voor het verbinden van IS 8-profielen.
- Technische gegevens
-
Technische gegevens

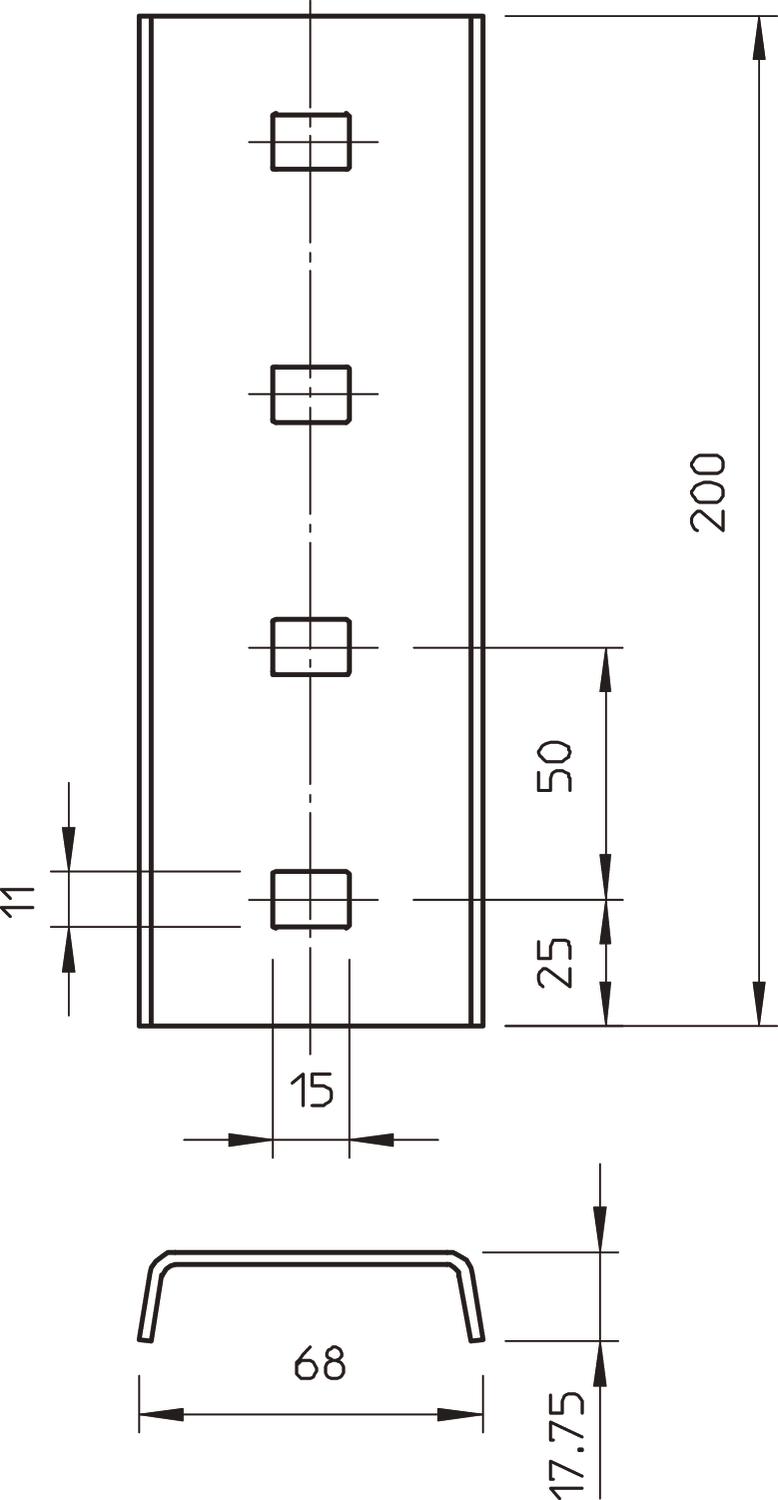

Afmetingen 17,5 x 68 x 200 Boorgatafstand centrisch 50 mm Dimensie 200x68 Geschikt voor profielvormen I-profiel Materiaal Staal Met schroeftoebehoren ja Oppervlak thermisch verzinkt Roestvast staal, gebeitst nee Afmetingen
Breedte 68 mm Hoogte 17,5 mm Lengte 200 mm - Alle typen
- Downloads
-
Specificatieblad VIS 8 FT / 6018300 , 0.20MB , pdfRichtlijn KTS Kabeltragsysteme , 1.61MB , pdfCatalogus Kabeltragsysteme , 45.23MB , pdfConformiteitsverklaring VIS 8 FT / 6018300 , 0.17MB , pdfREACH Conformiteitsverklaring VIS 8 FT / 6018300 , 0.12MB , pdfRoHS Conformiteitsverklaring VIS 8 FT / 6018300 , 0.13MB , pdfDuurzaamheidsrapport Duurzaamheidsrapport kabeldraagsystemen , 2.00MB , pdfMontagehandleiding Montagehandleiding I-profielsystemen , 0.03MB , pdfMontagehandleiding General information on the mounting , 2.61MB , pdf
