- Productbeschrijving
-
Productbeschrijving

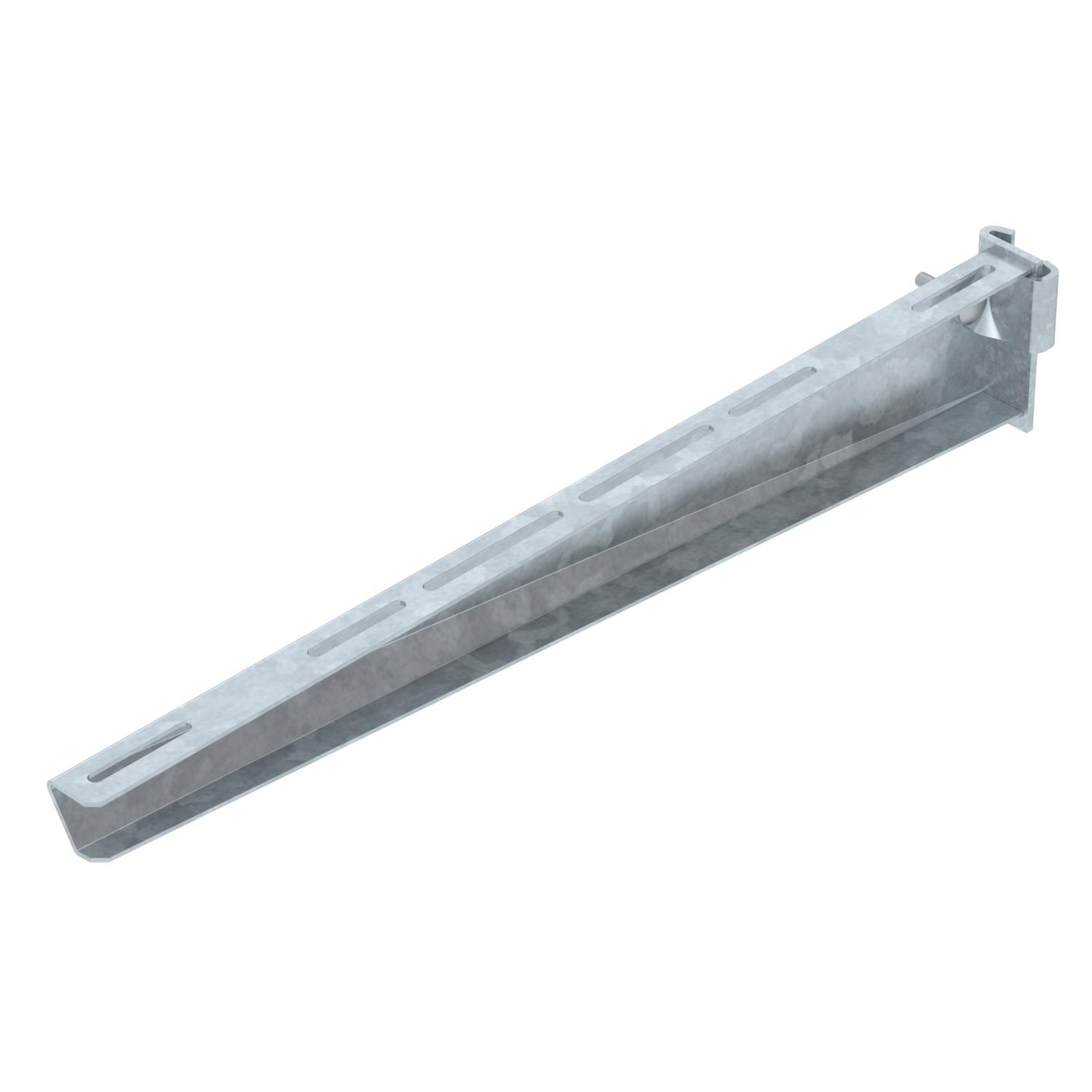

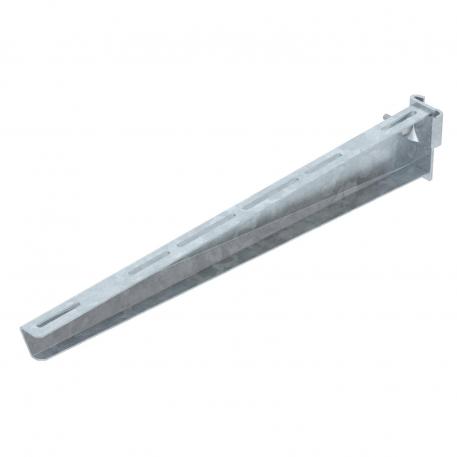

Console in middelzware uitvoering voor traploze bevestiging aan een IS 8-profiel.
- Technische gegevens
-
Technische gegevens
Dimensie B610mm F in kN 3 kN Functiebehoud nee Materiaal Staal Oppervlak thermisch verzinkt Roestvast staal, gebeitst nee Uitvoering Profielconsole Afmetingen
Afm. H 100 mm Breedte 610 mm Hoogte 100 mm Lengte 41 mm Maat A 41 mm Maat B 610 mm Maat L 610 mm Technische gegevens
Belastingsdiagram console type AS 30
- Doorbuiging van het uiteinde van de console bij toegestane consolebelasting
- Toegestane consolebelasting in kN zonder manlast
- Belastingscurve met consolelengte in mm
- Alle typen
- Downloads
-
Specificatieblad AS 30 61 FT / 6419412 , 0.20MB , pdfRichtlijn KTS Kabeltragsysteme , 1.61MB , pdfCatalogus Kabeltragsysteme , 45.23MB , pdfConformiteitsverklaring AS 30 61 FT / 6419412 , 0.17MB , pdfREACH Conformiteitsverklaring AS 30 61 FT / 6419412 , 0.12MB , pdfRoHS Conformiteitsverklaring AS 30 61 FT / 6419412 , 0.12MB , pdfDuurzaamheidsrapport Duurzaamheidsrapport kabeldraagsystemen , 2.00MB , pdfMontagehandleiding Montagehandleiding I-profielsystemen , 0.03MB , pdfMontagehandleiding General information on the mounting , 2.61MB , pdf
