- Productbeschrijving
-
Productbeschrijving

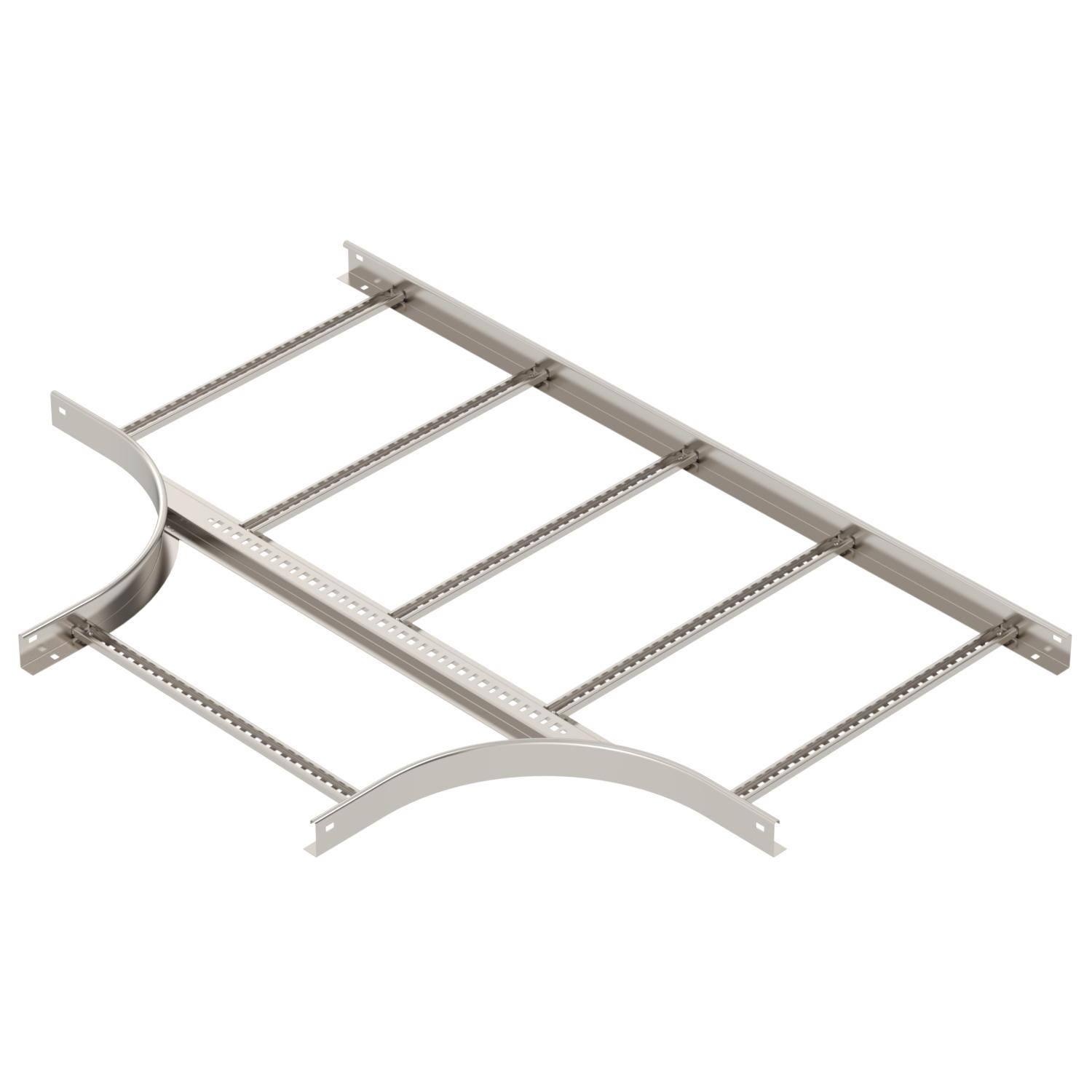

T-stuk, horizontaal met gelaste sporten, voor alle types kabelladder met een zijhoogte van 60 mm.
- Technische gegevens
-
Technische gegevens
Dimensie 60x600 Functiebehoud nee Materiaal Roestvast staal 1.4301 Oppervlak blank, nabehandeld Plaatdikte 1,5 mm Roestvast staal, gebeitst nee Uitvoering Aftakking symmetrisch Uitvoering van de sporten Profiel niet geperforeerd Uitvoering van de zijkant Vlak profiel Uitvoering verbinder zonder verbinder Verspanuitvoering nee Afmetingen

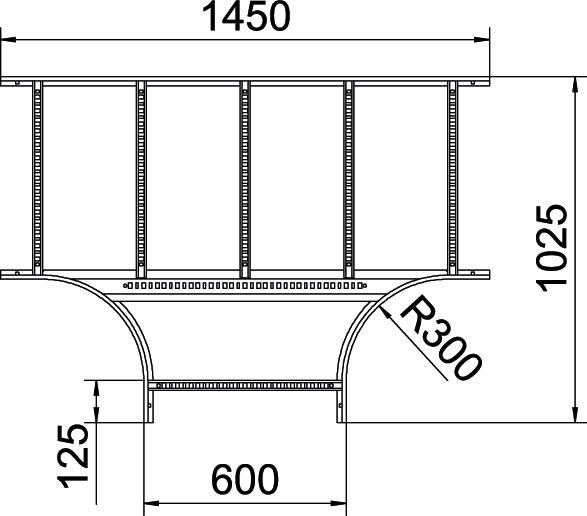

Breedte 600 mm Hoogte 60 mm Maat B 600 mm Maat R 300 mm - Alle typen
- Downloads
-
Specificatieblad LT 660 R3 A2 / 6225258 , 0.25MB , pdfRichtlijn KTS Kabeltragsysteme , 1.61MB , pdfCatalogus Kabeltragsysteme , 45.23MB , pdfConformiteitsverklaring LT 660 R3 A2 / 6225258 , 0.15MB , pdfUK Conformiteitsverklaring LT 660 R3 A2 / 6225258 , 0.09MB , pdfREACH Conformiteitsverklaring LT 660 R3 A2 / 6225258 , 0.12MB , pdfRoHS Conformiteitsverklaring LT 660 R3 A2 / 6225258 , 0.12MB , pdfMontagehandleiding Montagehandleiding kabelladdersystemen , 6.45MB , pdfMontagehandleiding General information on the mounting , 2.61MB , pdf
