- Productbeschrijving
-
Productbeschrijving

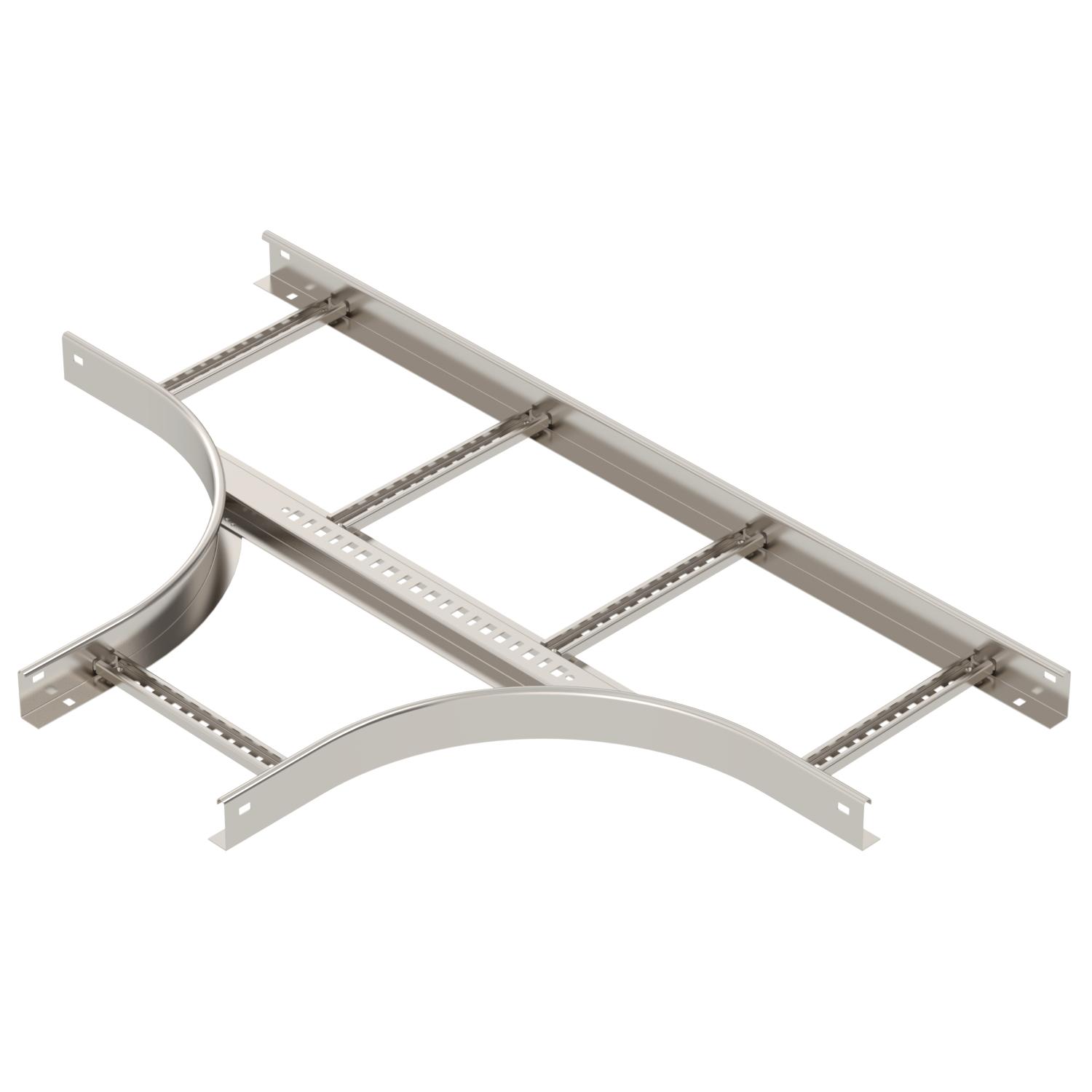

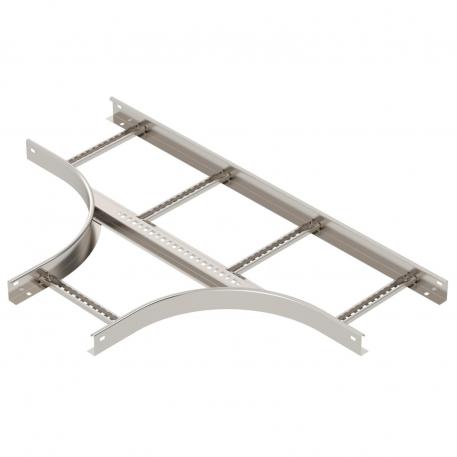

T-stuk, horizontaal met gelaste sporten, voor alle types kabelladder met een zijhoogte van 60 mm.
- Technische gegevens
-
Technische gegevens
Dimensie 60x300 Functiebehoud nee Materiaal Roestvast staal 1.4571 Oppervlak blank, nabehandeld Plaatdikte 1,5 mm Roestvast staal, gebeitst nee Uitvoering Aftakking symmetrisch Uitvoering van de sporten Profiel niet geperforeerd Uitvoering van de zijkant Vlak profiel Uitvoering verbinder zonder verbinder Verspanuitvoering nee Afmetingen

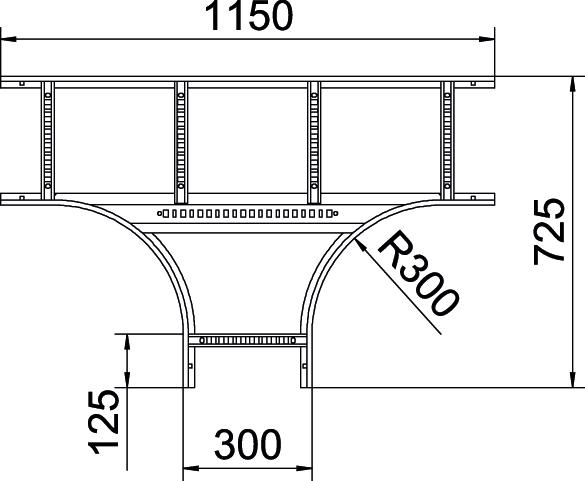

Breedte 300 mm Hoogte 60 mm Maat B 300 mm Maat R 300 mm - Alle typen
- Downloads
-
Specificatieblad LT 630 R3 A4 / 6225272 , 0.23MB , pdfRichtlijn KTS Kabeltragsysteme , 1.61MB , pdfCatalogus Kabeltragsysteme , 45.23MB , pdfConformiteitsverklaring LT 630 R3 A4 / 6225272 , 0.15MB , pdfUK Conformiteitsverklaring LT 630 R3 A4 / 6225272 , 0.09MB , pdfMontagehandleiding Montagehandleiding kabelladdersystemen , 6.45MB , pdfMontagehandleiding General information on the mounting , 2.61MB , pdf
